TS-903

The TS-903 is a designed microphone for exclusive use with the conference units of the Infrared Conference system. Ring type In-Use lamp located at the microphone head permits displaying the operation status of the conference units.

TS-902

The TS-902 is a Delegate unit of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. It can be operated on either the AD-0910 AC adapter (optional) or the BP-900 lithium-ion battery (optional). It is equipped with a remaining battery indicator. Two types of dedicated microphones are made available for the TS-902 as optional products: the TS-903 standard “type and the TS-904 long type.”

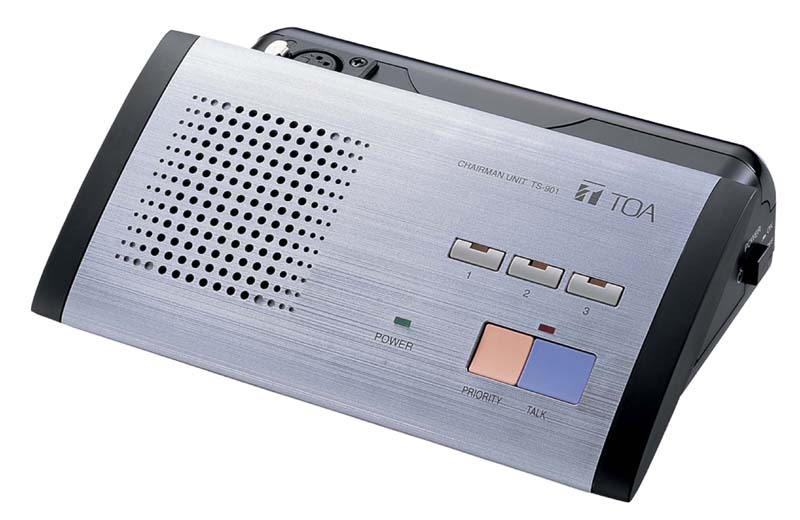

TS-901

The TS-901 is a Chairman unit of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. The Chairman unit features a priority speech key which allows it to take precedence over the TS-902 Delegate units (optional) when speaking. It can be operated on either the AD-0910 AC adapter (optional) or the BP-900 lithium-ion battery (optional). It is equipped with a remaining battery indicator. Two types of dedicated microphones are made available for the TS-901 as optional products: the TS-903 standard “type and the TS-904 long type.”

TS-919B4

The TS-919B4 is a Bridge unit for connecting four Wired Conference units of the TS-811, TS-911, TS-812, or TS-912. It connects to the conference unit with a Category 5 cable.

TS-919B1

The TS-919B1 is a Bridge unit for connecting a single Wired Conference unit of the TS-811, TS-911, TS-812, or TS-912. It connects to the conference unit with a Category 5 cable.

TS-918 CE

The TS-918 is an interface necessary for incorporating the Wired conference unit(s) in the conference system. It is connected to the TS- 910 Central unit with a coaxial cable and to the TS-919B1 or TS- 919B4 Bridge unit with a Category 5 cable. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard “equipment rack (1 unit size). “

TS-912

The TS-912 is a Delegate unit with voting function that can be connected to the conference system by a cable. The TS-912 is directly connected to the TS-919B1 or TS-919B4 Bridge unit, then to the TS- 910 Central unit via the TS-918 Expansion unit. Either the standard type or long type can be selected for the microphone.

TS-911

The TS-911 is a Chairman unit with voting function that can be connected to the conference system by a cable. It is equipped with a priority switch, allowing speech to take precedence over the Delegate unit. The TS-911 is directly connected to the TS-919B1 or TS-919B4 Bridge unit, then to the TS-910 Central unit via the TS-918 Expansion unit. Either the standard type or long type can be selected for the “microphone.”

TS-910 CE

The TS-910 is a Central unit of the Integrated conference system designed for use with both the Wired and Infrared conference units in combination. Connecting to the Expansion unit and Infrared Transmitter/Receiver unit, the TS-910 can control the conference units. Up to 192 Wired and Infrared Conference units in total can be used per system. The incorporated Feedback suppressor (FBS) function helps to effectively suppress acoustic feedback. External control, voting result confirmation, and equipment installation confirmation can be performed on a PC. Also, 2 channels of audio signal lines are provided for base language and translation language. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard “equipment rack (4 unit size).
